ESD Sticky Mats for Electronics Assembly and Clean Areas



Product Overview

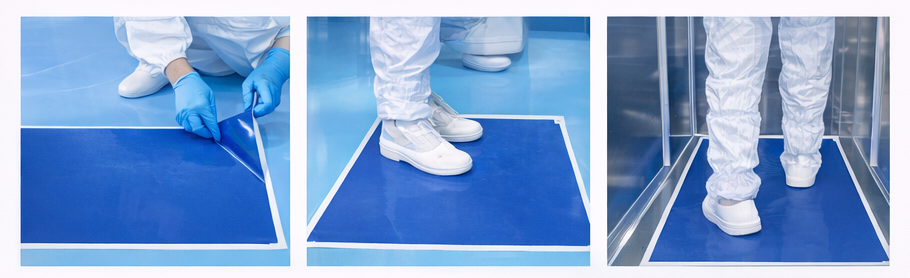

Sticky mats are used at entry points to help capture dust, dirt, and particles from shoes, carts, and light traffic before people enter clean areas, electronics assembly spaces, laboratories, or controlled work zones. For procurement and facility teams, selection should be based on mat size, layer count, adhesive strength, floor layout, traffic level, and replacement frequency.

Review sticky mats for particle capture at facility entrances and controlled work-area boundaries. Placement near an ESD-controlled area does not establish electrical ESD properties or suitability for a cleanroom classification. If either is required, request documentation for the exact product and review it against facility requirements before ordering.

Common Applications

Sticky mats are commonly placed outside clean rooms, ESD-controlled areas, electronics assembly lines, inspection rooms, packaging areas, and lab entry points. They can help reduce particles tracked into controlled environments and support cleaner work areas when used as part of a broader facility control process.

Specification Options

Key specifications include mat size, number of layers, sheet thickness, adhesive strength, color, numbered tabs, backing material, packaging quantity, and floor compatibility. Mat size should match doorway width, foot traffic, cart movement, and available floor space. Layer count affects replacement frequency and usage planning.

Buyers should also review whether the mat needs a frame, whether it will be used on tile, epoxy, or another floor surface, and whether color coding is needed for different work areas.

Mat size Layer count Adhesive strength Color Floor compatibility Entry point traffic

How to Choose

Start with the entry point and traffic pattern. A small doorway may require a different mat size than a wider clean area entrance. High-traffic areas may require more frequent layer changes or larger mat coverage. If the mat is used near electronics assembly, procurement teams should also coordinate with ESD area requirements.

For multi-site purchasing, align mat dimensions and color to simplify replenishment. Specify length and width with units, layers per mat, mats per pack or carton, floor surface, and whether the entrance carries foot traffic, carts, or both. Review floor and adhesive compatibility and any frame requirements for the quoted option. Base layer-change checks on observed contamination and facility procedures rather than a fixed replacement interval.

Sticky Mat Solutions

Cleanroom Entry Control

Helps reduce dust transfer before entering cleanrooms, laboratories, and controlled production areas.

Multi-Layer Design

Confirm the number of peel-off layers per mat for the quoted option. Plan layer removal and mat replacement from observed contamination, remaining usable layers, and facility procedures rather than assuming a fixed service life.

Strong Particle Capture

Water-based acrylic adhesive helps capture dust and debris from shoes and cart wheels.

Custom Options

Available in common sizes, blue or white colors, and custom packaging options.

Sticky Mat Key Features

Suitable for cleanrooms, laboratories, electronics manufacturing, pharmaceutical facilities, medical environments, and other areas requiring contamination control.

Feature	Detail
Effective Dust Control	Captures dust, dirt, and particles before they enter sensitive environments.
Clean Peel-Off Layers	Each adhesive layer can be removed quickly when contaminated.
Reliable Adhesion	Designed to capture contaminants while allowing clean layer removal.
Multiple Standard Sizes	Common options include 18 in ? 36 in, 24 in ? 36 in, and 26 in ? 45 in.

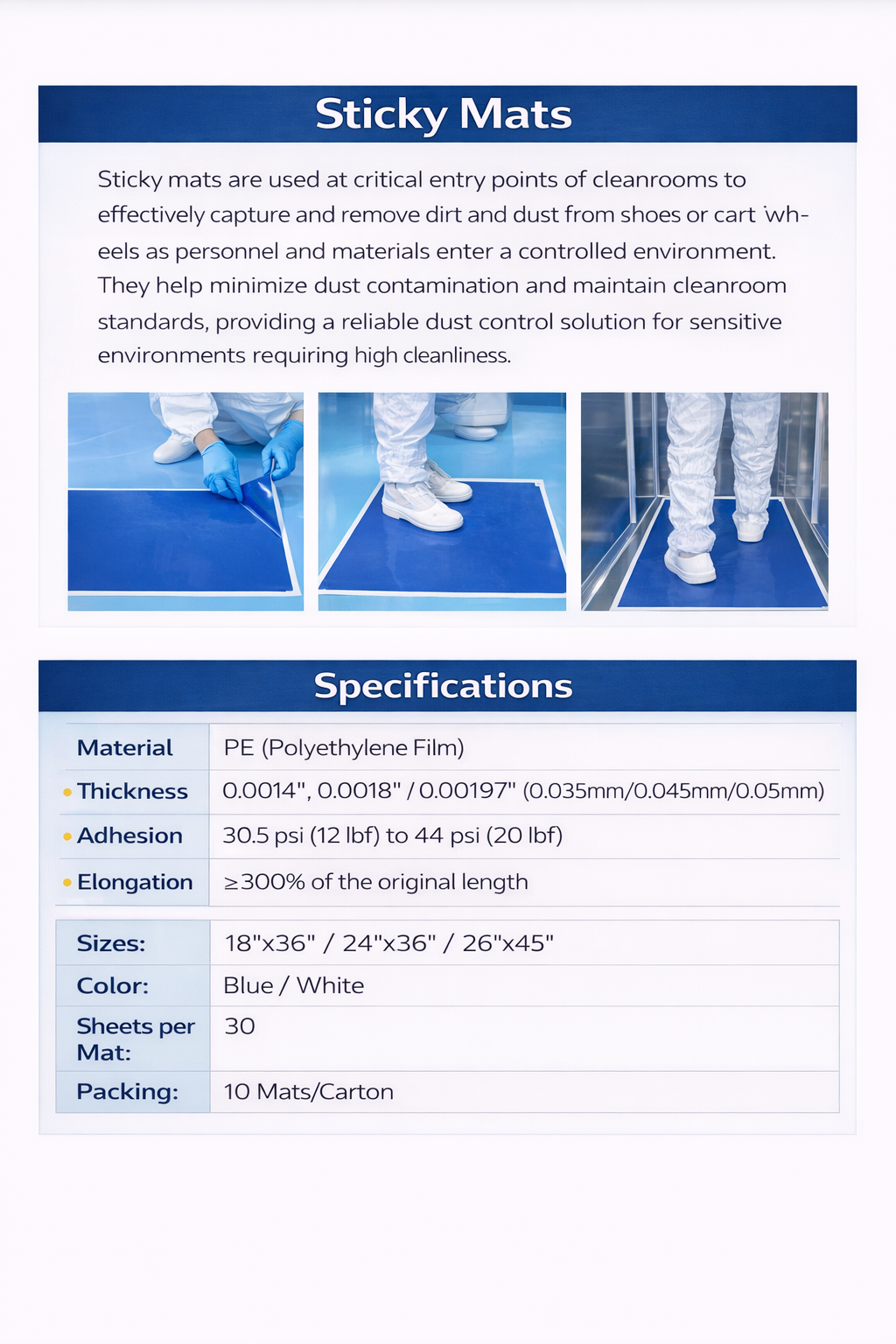

Product Specifications

Specification	Details
Material	PE film
Adhesive Type	Water-based acrylic adhesive
Thickness	0.035 mm / 0.045 mm / 0.050 mm
Adhesion Strength	30.5 psi (12 lbf) - 44 psi (20 lbf)
Elongation	?300%
Standard Sizes	18 in ? 36 in / 24 in ? 36 in / 26 in ? 45 in
Color Options	Blue / White
Layers per Mat	Confirm layers per mat for the quoted option.
Packaging	10 mats / carton
Surface Type	Smooth PE film
Applications	Cleanrooms, labs, electronics, pharmaceutical, medical facilities
MOQ	Flexible
Lead Time	To be confirmed in the quotation for the selected specification, quantity, and delivery requirements.
OEM Support	Custom size, color, and packaging available

Sourcing Information Needed

For an RFQ, send the intended entry area, foot or cart traffic, floor surface, required mat length and width with units, color, layers per mat, mats per pack or carton, order quantity, and delivery location. Include the expected contamination level, replacement planning needs, and any frame or packaging requirements. If electrical ESD performance or a cleanroom classification is required, identify the requirement and request applicable documentation for the exact product before ordering.

Related Products

These related pages can help buyers compare adjacent product categories and prepare a more complete sourcing request.

ESD Wrist Straps ESD Gloves ESD Shoes Top ESD Products for Assembly Lines

FAQ

Where are sticky mats used?

They are used near clean area entrances, electronics assembly areas, inspection rooms, labs, and controlled industrial workspaces.

How many layers should a sticky mat have?

Layer count depends on traffic level, replacement frequency, and facility requirements.

How should buyers choose mat size?

Mat size should match doorway width, traffic flow, and whether carts or only foot traffic pass over the mat.

What information is needed for a quote?

Mat size, color, layer count, quantity, floor type, and application environment.
